Hinge Pins

to

hang a Gate

from a

metal T-Post

Upper Hinge Pin
Upper Hinge Pin
Lower Hinge Pin
Hinge Pin Set
180º Swing on same Side of Fence
Hang a Big Gate from a T-post
Hang a Garden Gate from a T-post
Hang a Gate in 1 Minute
$24.00 per set

Easy, like 1 - 2 - 3

Slide on your Hinge Pins and hang the Gate before you stretch the fencing

Let a standard metal T-post replace the wooden post.  Hang a Gate from a T-post in less than one minutes.  By using the “knobs” on the T-post you can securely hang any size Gate, and it will swing more than 200º

Shipped via Priority Mail

Pat. Pend.

Locking Pin
$24.00 per set

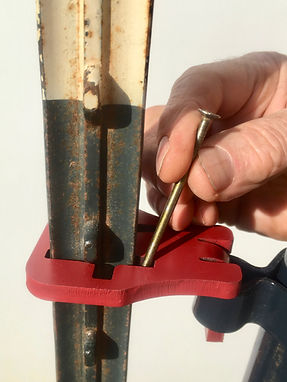

Locking pin provided to keep upper Gate Pin from possibly easing up due to lifting of gate over uneven terrain.

Simply insert as shown in picture to the left



Normally not needed as weight of gate locks upper Pin.

Hinge Pins, Pat Pending, will hang and hold any farm or garden gate, with 1/2" or 5/8” or 3/4" hinge eyes, from a standard Metal T-post.



The Hinge Pin set consists of a bottom and a top hinge pin. Bottom pin slides onto T-post, tilts 45º, and locks above a knob on the T-post. (See drawing above ).



Bottom pin comes with large washer to make for an easy swing of the gate.



The top pin slides onto T-post, with pin facing down, rests under a knob of T-post, locks into position when weight of gate is applied.



This position will not allow the gate to be lifted off its hinges should an animal’s head get under the gate.

We recommend to use the locking pin (supplied) as shown.



On Garden Gate the upper pin may be placed - pin up - and rest on top of a knob on post.



Pins are made, super strong, with 5/16” steel, painted, and will allow gate to swing 200+º.

$8.75 Priority Mail Shipping for any quantity
